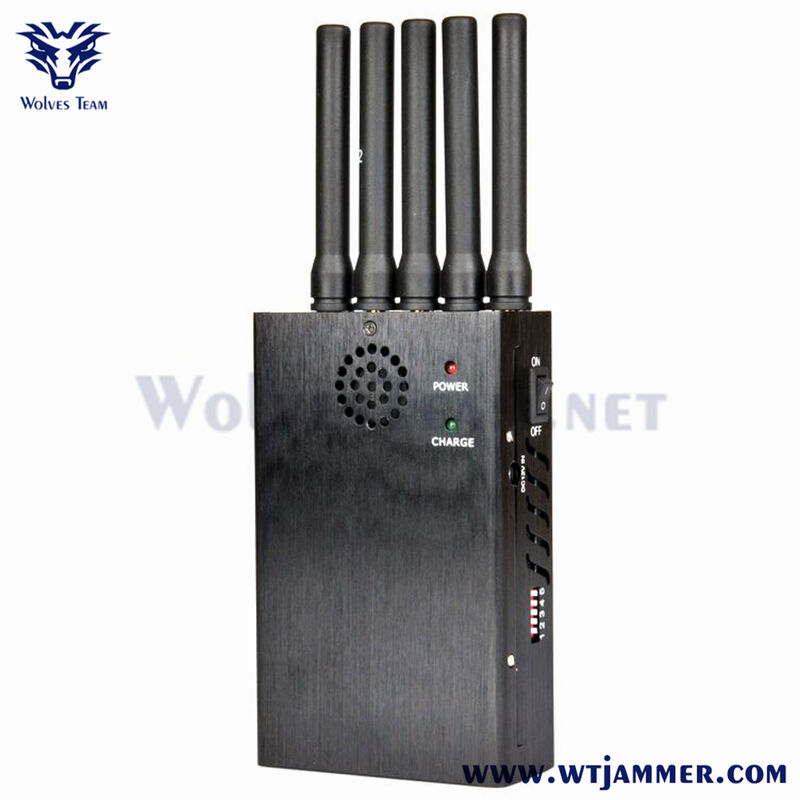

5-Channel Portable GPS/2G/3G/4G/WiFi Signal Jammer

5-Channel Portable GPS/2G/3G/4G/WiFi Signal Jammer

Nom De La Marque:	Wolves Team
Numéro De Modèle:	WT101R-5
MOQ:	1
Prix:	1
Délai De Livraison:	7-15
Conditions De Paiement:	L / C, D / P, Western Union, T / T

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Chine

Certification:

ROHS/FCC/ISO 9000/CE

Type de produit:

Brouilleur tenu dans la main de signal

Nombre de canaux:

18 canaux

Bandes de fréquence de brouillage:

GSM/2G/3G/4G/5G, Wi-Fi 2,4G/5G/6E, GPS L1/L2/L5, Bluetooth

Gamme de fréquences de fonctionnement:

800-960 MHz, 1 710-2 700 MHz

Type de batterie:

Batterie lithium-ion rechargeable intégrée

Temps de travail continu:

1-2 heures

Tension d'entrée:

CA 100-240 V 50/60 Hz / CC 12 V

Température de fonctionnement:

-10 ℃ ~ + 55 ℃

Température de stockage:

-20 ℃ ~ + 70 ℃

Détails d'emballage:

Emballage en carton

Capacité d'approvisionnement:

Mettre en évidence:

5-channel portable signal jammer

GPS WiFi signal blocker

4G 3G 2G signal jammer

Description du produit

5-Channel Portable GPS/2G/3G/4G/WiFi Signal Jammer

This advanced 18-band handheld portable signal jammer features an innovative 18-antenna design with dual-band channels (12/13, 15/16) to eliminate mutual interference. It effectively blocks 5G, 4G, 3G, 2G cellular signals along with LOJACK, GPS, and Wi-Fi RF bands. With 18W output power, the jamming range extends 2-25 meters (at -75dBm, depending on local signal strength).

Key Features

Unique 18-band handheld portable design with 18 antennas and dual-band channels to eliminate interference
18W power output with 2-25m jamming range (at -75dBm, signal strength dependent)
Built-in 12000mAh battery providing 2 hours of continuous operation
Advanced cooling system with 3 built-in fans and larger heat sink for excellent heat dissipation
DIP switch control for independent band activation/deactivation without mutual interference
Compact handheld portable design (210x130x46mm)
Versatile applications for various environments requiring signal security

Application Areas

Meeting rooms, classrooms, training centers, churches, temples
Banks, museums, galleries, theatres, concert halls
Factories, hospitals, cars, trucks, buses, vans
Public and private areas requiring signal jamming and information security

Technical Specifications

Jamming Range	2-25 meters (depending on signal strength in given area)
Product Size	190x126x46mm
Output Power	18 Watt
Power Supply	AC100-240V to DC12V IN. Built-in Battery: 12000mAh
Cooling System	3 Cooling fans inside
Working Time	2 Hours
Box Size	31x27x8cm
Gross Weight/Set	2.5kg
Carton Size	67x54x46cm/20pc
Gross Weight/CTN	45kg
Delivery Date	1-3 days
Warranty Date	1 Year

Order Information - Frequency Configuration

Configuration A

Channel	Signal System	Frequency	Power
1	CDMA/868/GSM&LORA	851-894 /900-960MHz	1W
2	PCS1900	1930-2000MHz	1W
3	3G	2110-2180MHz	1W
4	4GLTE Low	698-798MHz	1W
5	4GLTE High	2500-2690MHz	1W
6	4G2300	2300-2400MHz	1W
7	UHF&CDMA450/4G1700/LORA	400-470/1710-1780/900-930MHz	1W
8	5G600	617-698MHz	1W
9	5G3500	3400-3600MHz	1W
10	5G3700	3600-3800MHz	1W
11	WIFI2.4G	2400-2500MHz	1W
12	WIFI5.2G	5100-5500MHz	1W
13	WIFI5.8G	5500-5900MHz	1W
14	GPS&Glonass L1	1560-1610MHz	1W
15	GPSL2L3L4L5	1170-1390MHz	1W
16	VHF&LOJACK	135-175MHz	1W
17	RC433	433MHz	1W
18	RC315	315MHz	1W

Configuration B

Channel	Signal System	Frequency	Power
1	GSM	925-960MHz	1W
2	DCS1800	1805-1880MHz	1W
3	3G	2110-2170MHz	1W
4	4GLTE Low	738-821MHz	1W
5	4GLTE High	2570-2690MHz	1W
6	4G2300	2300-2400MHz	1W
7	UHF&CDMA450/4G1700/LORA	400-470/1710-1780/900-930MHz	1W
8	5G1400	1427-1518MHz	1W
9	5G3500	3400-3600MHz	1W
10	5G3700	3600-3800MHz	1W
11	WIFI2.4G	2400-2500MHz	1W
12	WIFI5.2G	5100-5500MHz	1W
13	WIFI5.8G	5500-5900MHz	1W
14	GPS&Glonass L1	1560-1610MHz	1W
15	GPSL2L3L4L5	1170-1390MHz	1W
16	VHF&LOJACK	135-175MHz	1W
17	RC433	433MHz	1W
18	RC315	315MHz	1W
